Pressure Range
Up to 22,000 psi (1,517 Bar)
Temperature Range
-20°C to 120°C (-4°F to 248°F)
Connection Options
End Connections:
- Butt Weld
- Socket Weld
- Threaded (1/2 inch BSP, 1/2 inch NPT, 3/4 inch BSP, 3/4 inch NPT)
Applications
- Hydraulic & Pneumatic Systems
- High-Pressure Testing Equipment
- Flow Control in Cryogenic & High-Temperature Environments
- Industrial Gas & Liquid Handling
Port Size
Available in sizes from DN 6 (NPS 1/4″) to DN 25 (NPS 1″)
Control Options
Actuation Type:
- Servo Operated Control for precise flow regulation
- Compatible with pneumatic and hydraulic actuation systems
Material Options
- Stainless Steel
Design Standard
- ASME B16.34
Certifications
Complies with international safety and performance standards:
- ISO 15848-1 (Leakage classification)
- API 607 (Fire-safe design)
- BS 6364 (Cryogenic service compliance)
| Part No |
Pressure Ratings (psi) |
Tubing |
Orifice (mm) |
A | B | C | D | E | Thickness | End Connection |
|---|---|---|---|---|---|---|---|---|---|---|
|
6C60NSS1A |
60000 |
1/4″ O.D.TUBE |
2 |
380 |
56 |
64 |
78 |
92 |
28 |
9/16″ UNF-C |
|
8C40NSS1A |
40000 |
3/8″ O.D.TUBE |
3 |
380 |
56 |
64 |
78 |
92 |
28 |
3/4″ UNF-C |
|
14C22NSS1A |
22000 |
9/6″ O.D.TUBE |
6 |
390 |
70 |
72 |
78 |
92 |
30 |
1/2″ BSP-C |
Core Benefits
- High-Pressure Control: Capable of handling extreme pressures, ensuring durability in critical applications.
- Precision Regulation: Servo-operated actuation provides superior control over flow rates with minimal hysteresis.
- Robust Construction: Built with high-quality stainless steel for corrosion resistance and long-term performance.
- Versatile Connectivity: Available with multiple end connection options for seamless integration into existing systems.
- Reliable Performance: Designed for industries such as Oil & Gas, Petrochemical, Aerospace, and Manufacturing.
- Enhanced Safety: Meets international industry standards for high-pressure and temperature applications.

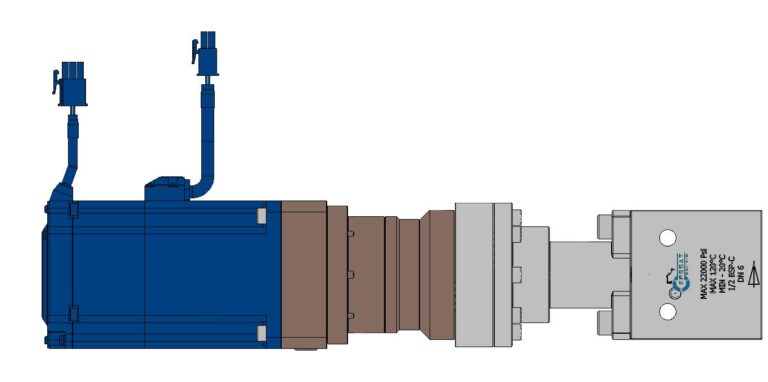

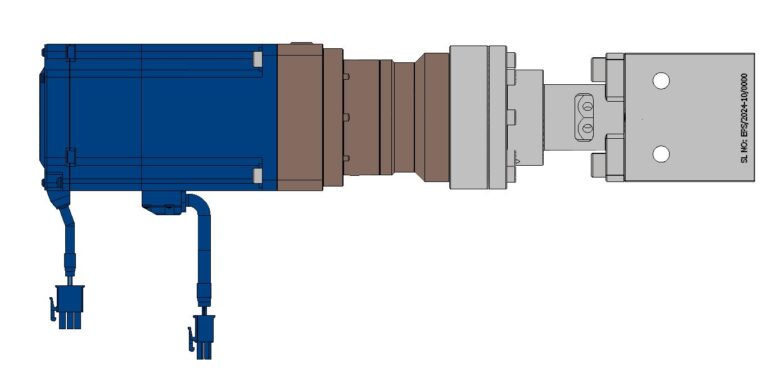

The Servo Operated Needle Control Valve ensures optimal performance with precision, reliability, and durability. Whether for industrial automation, fluid control, or high-pressure applications, this valve is the perfect choice for efficient and accurate flow management.
